Intertecnica 7325 CQN Fastener
Product Description

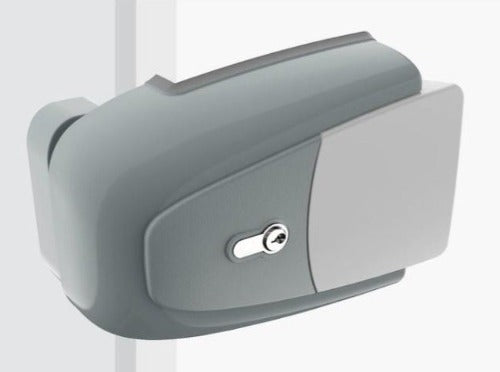

Intertecnica 7325 CQN Fastener – Complete Handle Kit
Complete edge-mounted handle and fastener kit from Intertecnica, designed for commercial coldroom and freezer door applications. Suitable for overlapping and semi-inset doors, the 7325 CQN provides secure automatic latching with an internal safety release and a sealed, hygienic design.
The handle kit is manufactured from corrosion-resistant materials for low-temperature environments and is designed for straightforward installation using only three pass-through holes. A patented gasket seals tightly to the door to prevent dirt traps, while tamper-proof fixings improve security when the door is closed. Manufactured in accordance with EN179.
Key features:
- Complete handle kit with fixing kit included
- Product code: R021279
- Suitable for doors up to 80kg
- Low-temperature and corrosion-resistant construction
- Easy mounting procedure (three pass-through holes)
- Automatic catching device

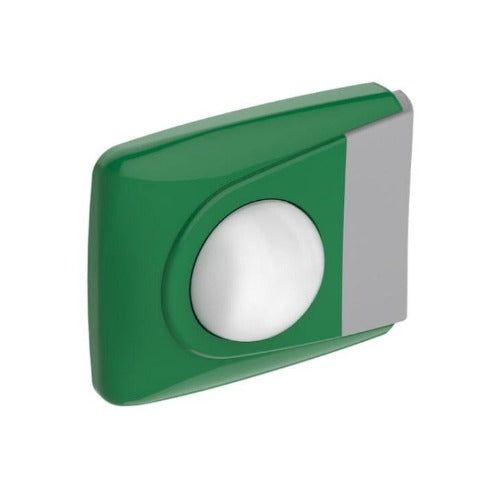

- Inside door release push-button, fully sealed and photoluminescent
- Patented gasket seals tight to door to prevent dirt traps
- Tamper-proof fixing when door is closed
- Easy-to-clean surfaces
- Suitable for overlapping and semi-inset doors
- Manufactured in accordance with EN179

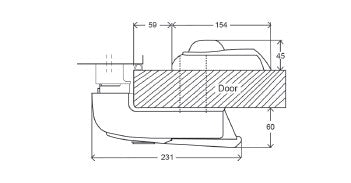

Technical details:
- Door thickness: 70mm–129mm
- Adjustment: Horizontal ±4mm
- Colour:
Body – Grey RAL7012
Handle – Grey RAL7004
Catch – Grey RAL7012
Offset information: Offset refers to the depth of the exposed edge of the door, including any door seal where applicable. Selecting the correct offset ensures proper alignment and sealing.
Additional resources:
Intertecnica 7000 series Product Video
Intertecnica Assembly Instructions
