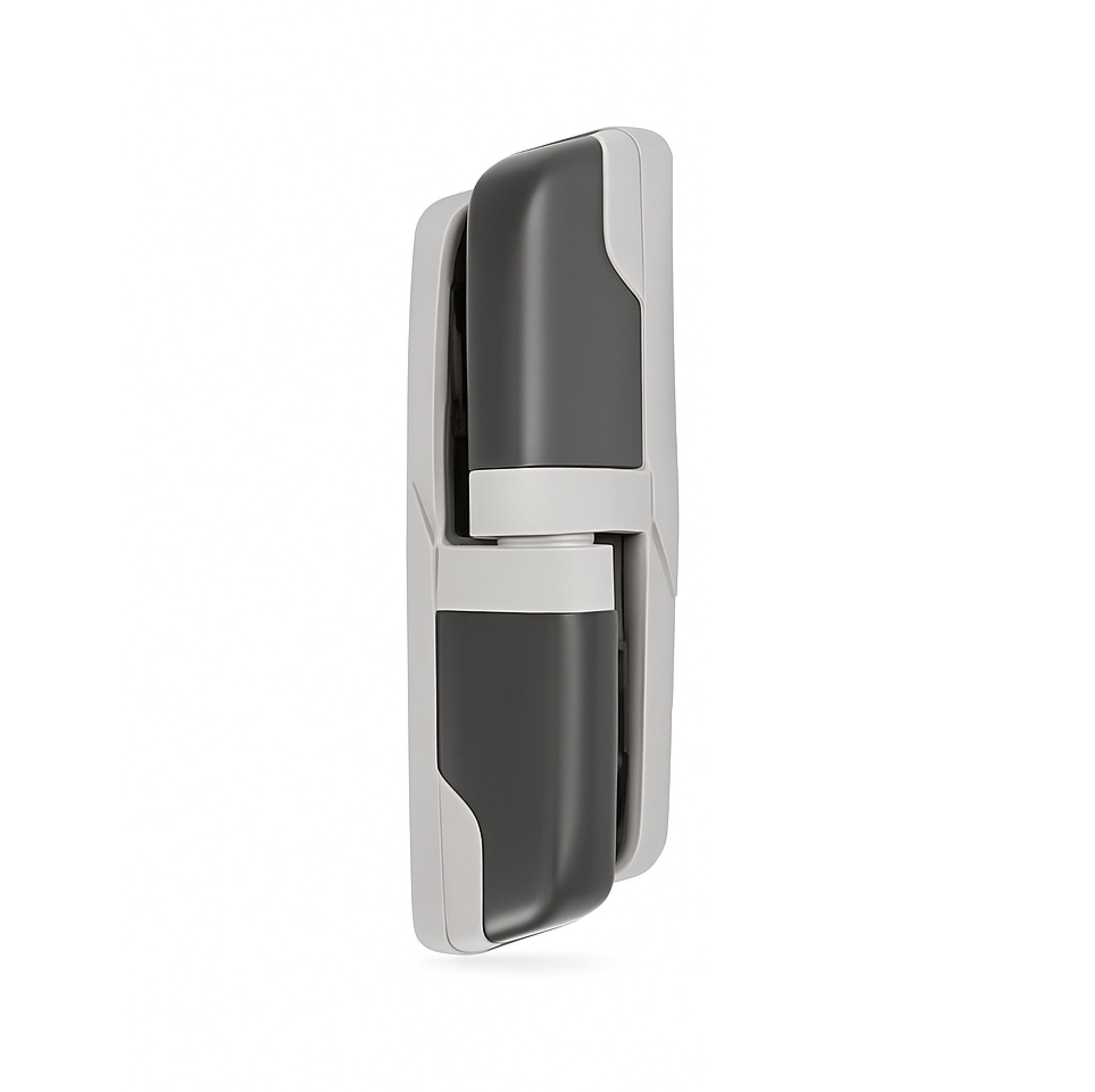

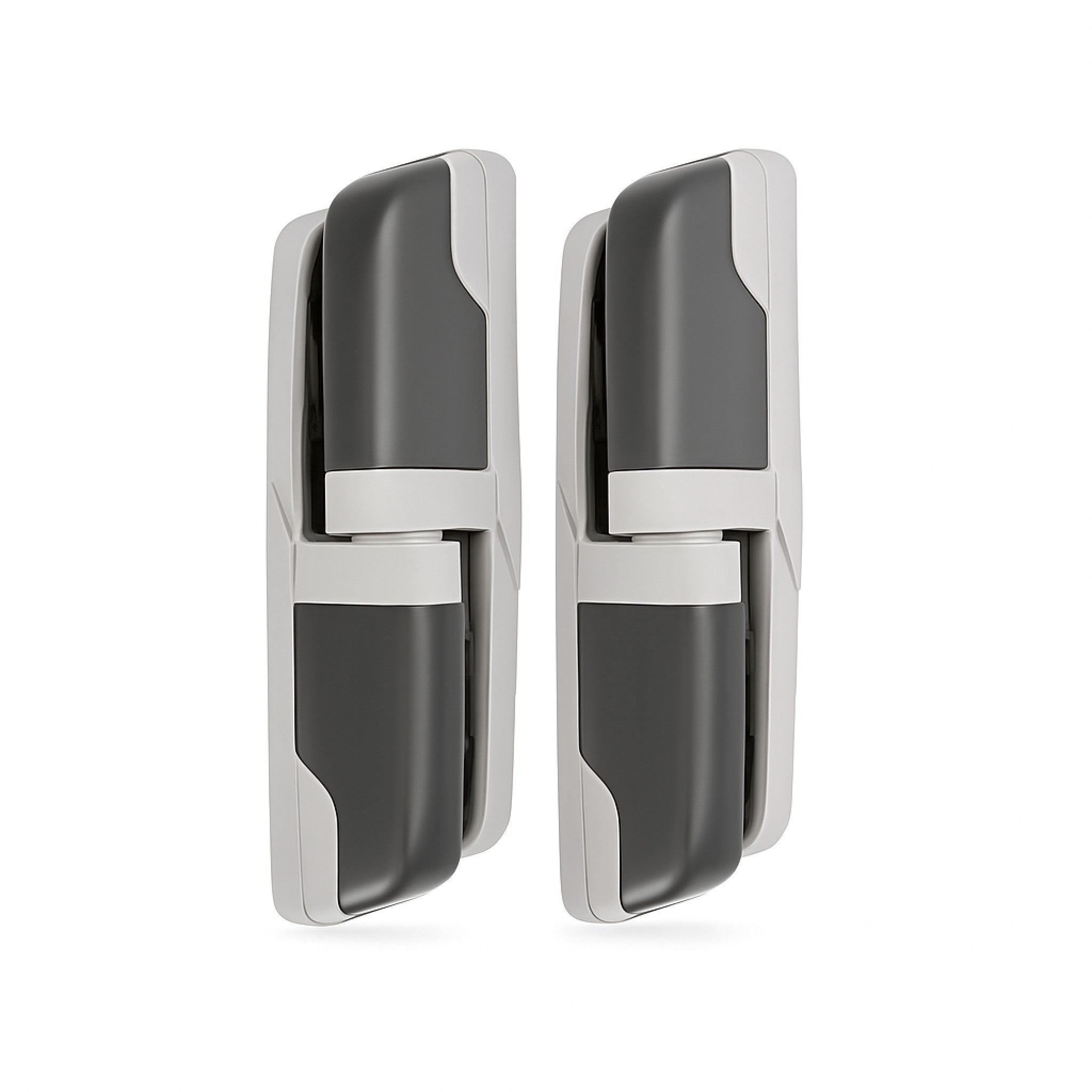

Fermod 471HP Rising Cold Room Door Hinges - Pair

Fermod 471HP Cold Room Door Hinges - Rising

Rising hinges suited to three sided doors where floor clearance for a sweeper gasket is required. These hinges are found on Foster Coldstore Doors. HP (High Performance version), Symmetrical, invisible and tamper-proof fixing screws. Interchangeable for left and right hand doors. For doors of 48 to 80 mm thickness (including gasket), for 180° opening.

Things worth noting:

• There are several hinges in this range that look similar.
• The code on the inside of the hinge cover is 0470 on all models of this hinge.
• The 473HP has a black composite adjusting mechanism behind the bottom cover.
• 470HP - Non-Rising
• 471HP - Rising - (Found on Foster Coldstore Doors)
• 472HP - Non-Rising Adjustable
• 473HP - Rising Adjustable

Max door weight 40kg
