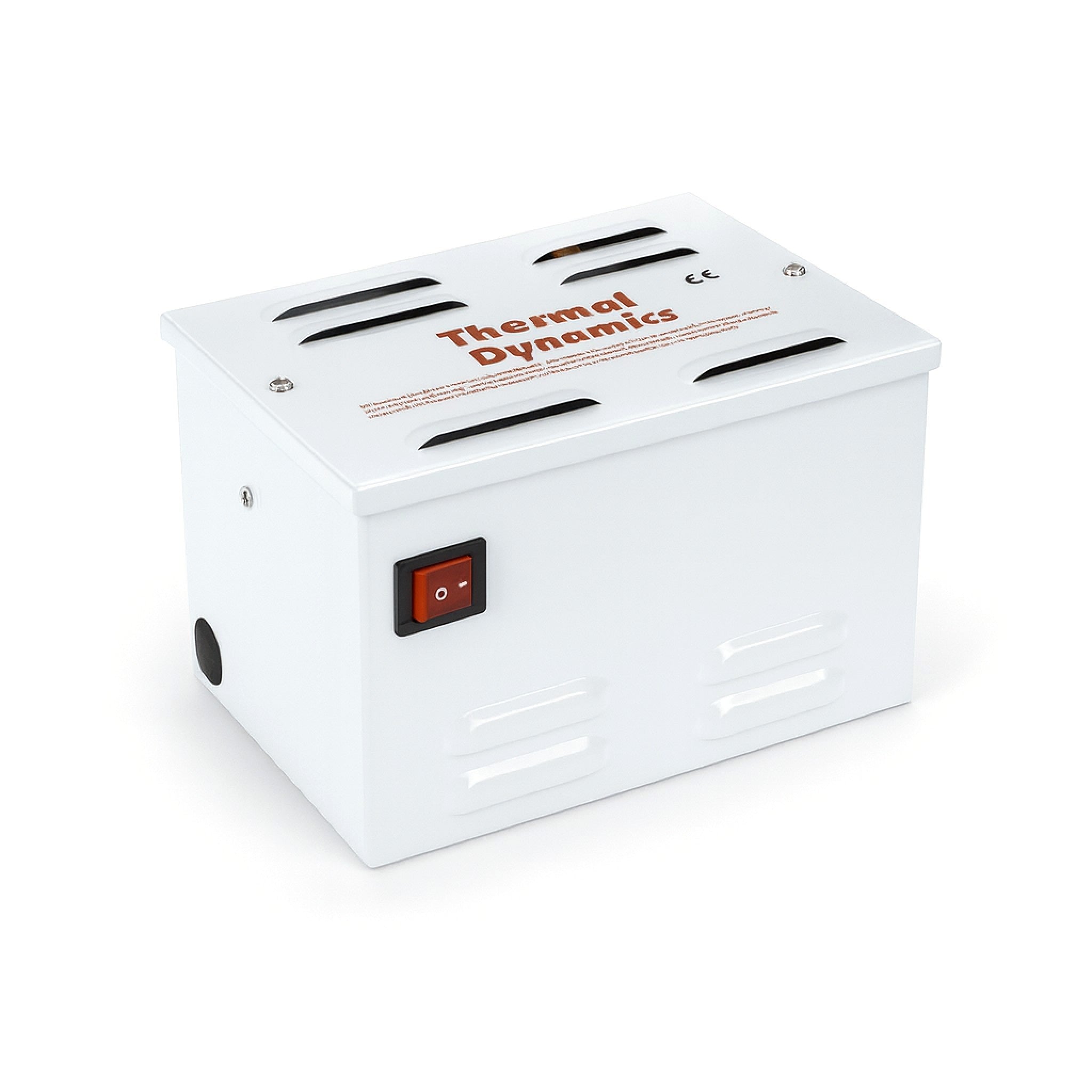

Thermal Dynamics Transformer TDL16366 – Low Voltage Heater Tape Transformer
Low-voltage transformer designed to suit 6mm (1/4 inch) heater tape for coldroom and freezer heating applications. This universal transformer allows adjustment of heater tape length within the unit, providing flexibility during installation.
Key features
- Low-voltage transformer for 6mm heater tape
- Universal design with adjustable heater tape length
- Suitable for coldroom and freezer heating systems
Technical details
- Model: TDL16366
- Input: 230/240V, 50/60Hz
- Output rating: 400VA
- Heating capacity: 16ft–36ft (4.88m–10.97m) of 6mm heater tape
Installation and compatibility
- Designed specifically for the heater tape specifications listed
- Suitable for use with Thermal Dynamics heater tape systems
Lead time and returns
- Manufactured to order
- Approximate lead time: 12 working days
- Non-returnable once ordered
Installation notice: This product must be installed by a trained and competent coldroom installer or refrigeration engineer. Electrical connections should be made in accordance with applicable regulations and site requirements.
