Fermod 473HP Adjustable Rising Coldroom Hinges - Pair

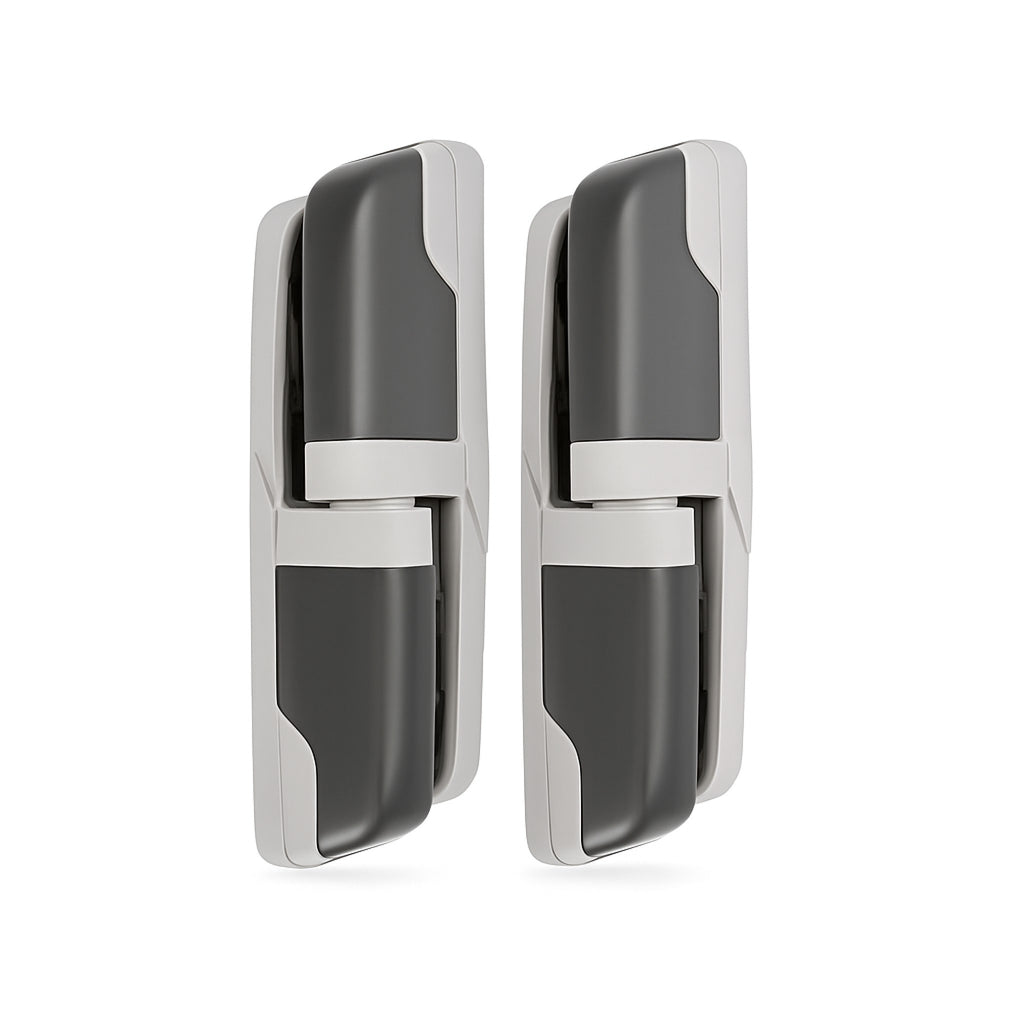

Fermod 473 Adjustable Rising Composite Coldroom Hinges – Pair
The Fermod 473 adjustable rising hinge set is designed for rebated coldroom doors where precise alignment and reliable sealing are required. Supplied as a pair, these composite hinges feature a rising action and height adjustment to support consistent gasket compression and smooth operation.
Key features:
- Supplied as a pair of adjustable rising hinges
- Composite construction
- Symmetrical design
- Invisible, tamper-proof fixing screws
- Interchangeable for left- or right-hand doors
- 180° door opening
- Suitable for door thicknesses from 48mm to 80mm, including gasket
- Maximum door weight: 40kg
Adjustment:
-
Height adjustable to assist accurate door alignment
Identification notes:
- Several hinges in this range look similar
- The internal code stamped inside the hinge cover reads 0470 on all models in this range
- The 473 rising adjustable hinge can be identified by a black composite adjusting mechanism behind the bottom cover
Model reference guide:
- 470HP: non-rising
- 471HP: rising (found on Foster Coldstore doors)
- 472HP: non-rising adjustable
- 473HP: rising adjustable (found on Kingspan rebated doors)
Supplied as a complete hinge pair for professional coldroom installations and replacement applications, available from Absolute Coldroom.
