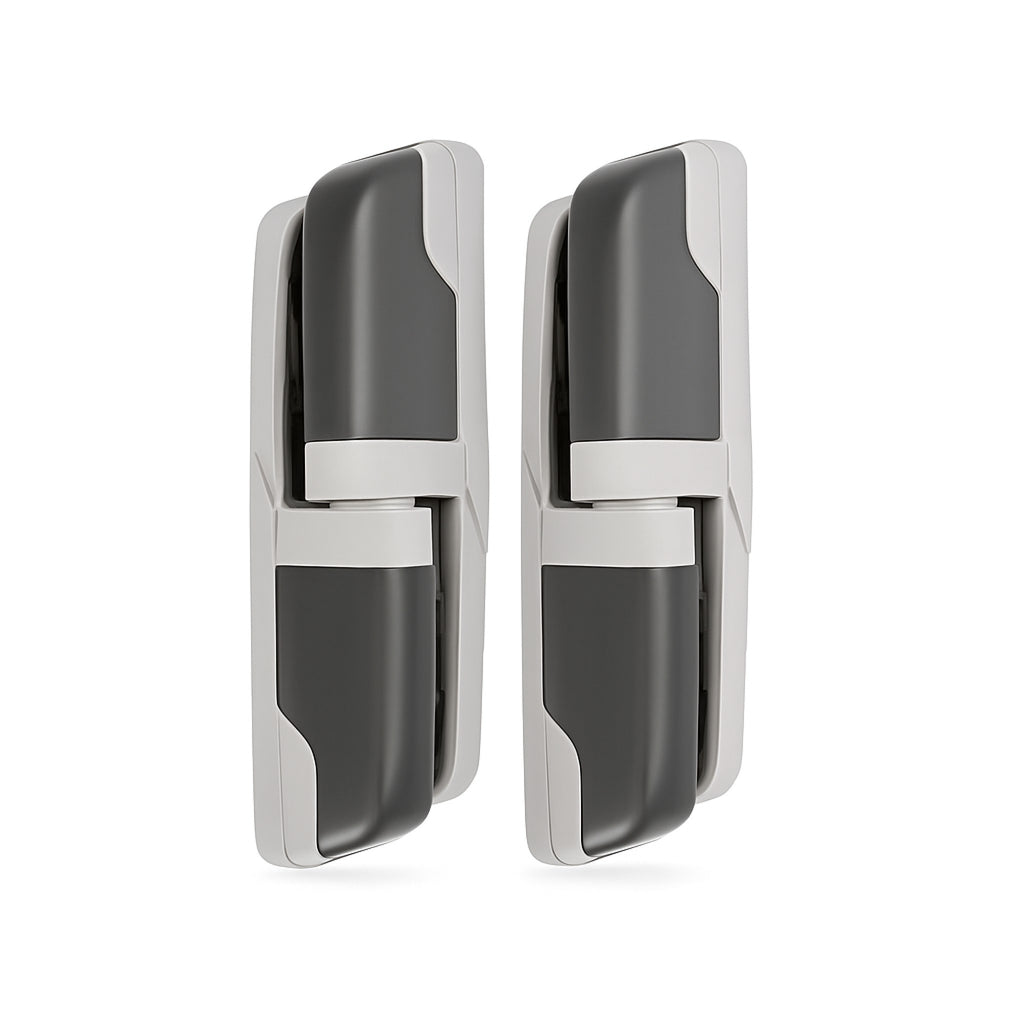

Fermod 470HP Non-Rising Coldroom Hinges – Pair
The Fermod 470HP non-rising hinge set is designed for four-side coldroom doors where clearance for a sweeper gasket is not required. Supplied as a pair, these high-performance hinges offer reliable operation and a clean finish for commercial coldroom installations.
Key features:
- Supplied as a pair (2 hinges)
- Non-rising coldroom door hinges
- Suitable for four-side doors where no sweeper gasket clearance is required
- High-performance (HP) design
- Symmetrical construction
- Invisible, tamper-proof fixing screws
- Interchangeable for left- or right-hand doors
- 180° door opening
- Suitable for door thicknesses from 48mm to 80mm, including gasket
- Maximum door weight: 40kg
Identification notes:
- Several hinges in this range look similar
- The internal code stamped inside the hinge cover reads 0470 on all models in this range
- The 471HP rising hinge is the most commonly fitted variant
- The 473HP rising adjustable hinge can be identified by a black composite adjusting mechanism behind the bottom cover
Model reference guide:
- 470HP: non-rising
- 471HP: rising (found on Foster Coldstore doors)
- 472HP: non-rising adjustable
- 473HP: rising adjustable
Supplied as a pair of hinges for professional coldroom installations and replacement applications, available from Absolute Coldroom.
