Fermod 309 hinges in chrome and black.

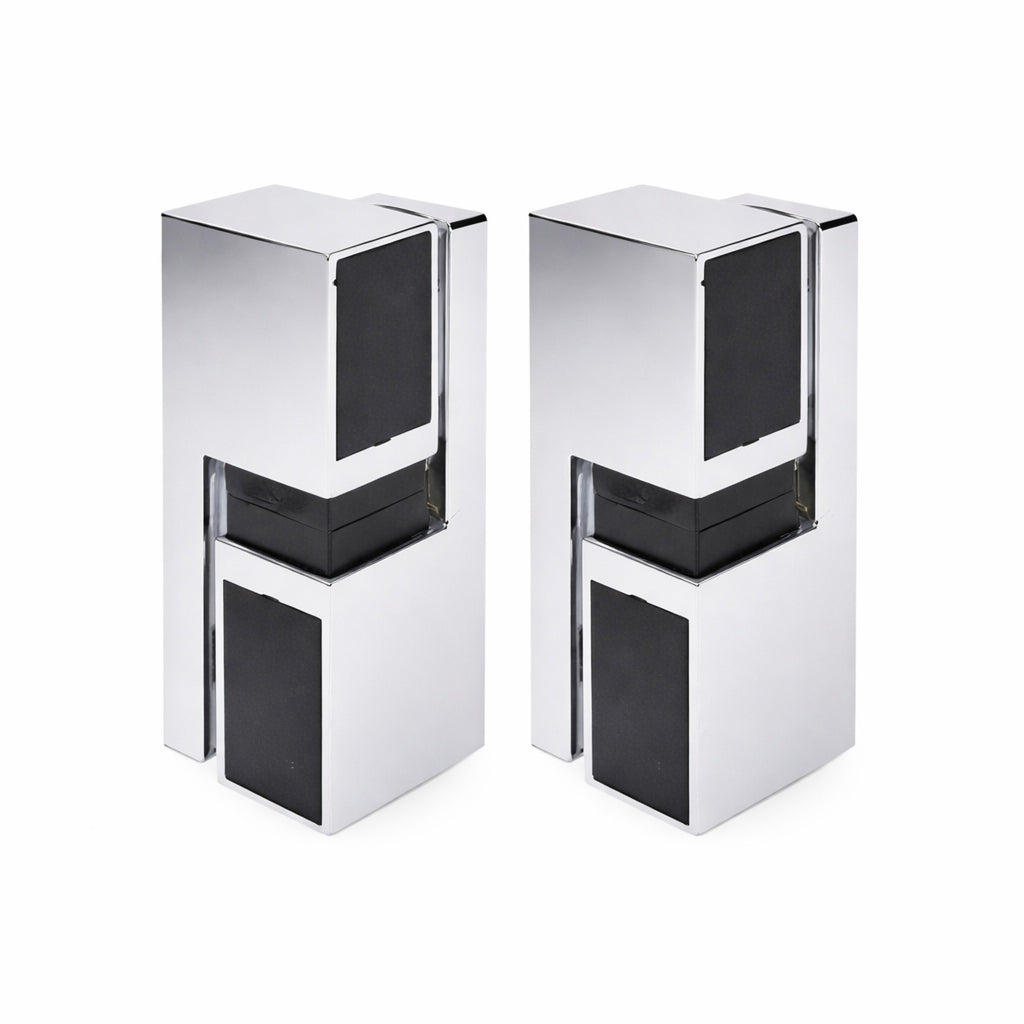

Fermod 309C/P Hinges - Chrome Plated - Pair

£63.00 Excl. VAT

Fermod 309/CP Rising Hinges – Pair for Light Overlapping Doors

The Fermod 309 hinge set is designed for light overlapping coldroom doors where smooth operation and reliable sealing are required. Supplied as a pair, these hinges feature an immediate rising action to help maintain consistent gasket compression during door operation.

Key features:

  • Supplied as a pair of hinges
  • Rising hinge design for overlapping coldroom doors
  • Symmetrical construction
  • Invisible, tamper-proof fixing screws
  • Interchangeable for left- or right-hand doors
  • 180° door opening
  • Suitable for door thicknesses from 46mm to 60mm, including gasket
  • Maximum door weight: 50kg

Finish options:

  • Enamelled
  • Chromium plated

Optional shim:

  • Optional 8mm shim available
  • Extends suitability to door thicknesses from 54mm to 76mm

Suitable for professional coldroom installations and replacement applications, available from Absolute Coldroom.
