Coldroom door limit switch

Coldroom Door Switch

£23.00 Excl. VAT

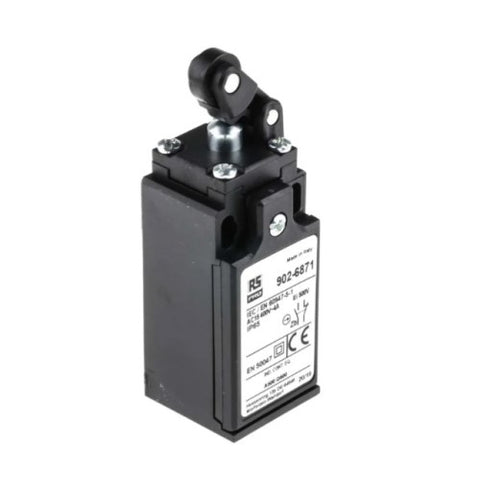

RS M20 AP Series Limit Switch – Roller Lever, IP65

The RS M20 AP series limit switch is an easy-to-use electromechanical snap-action device designed for reliable detection and control in industrial, refrigeration, and coldroom applications. Its reinforced thermoplastic fibreglass construction provides double insulation and IP65 protection for dependable operation in demanding environments.

Key features:

  • Snap-action limit switch with roller lever actuator
  • Visible mechanical operation
  • Normally Open / Normally Closed (NO/NC) contacts
  • Rated up to 440V
  • Conventional thermal current: 10A
  • Electrically separated contacts
  • Precise and repeatable operating points
  • Immune to electromagnetic disturbances
  • Suitable for presence/absence detection, positioning, travel limits, object passing, and counting

Construction and protection:

  • Reinforced UL-V0 thermoplastic fibreglass body
  • Plastic casing rated to IP65
  • Double insulation
  • Standardised dimensions to EN 50047 and EN 50041
  • Compatible with a range of operating heads within the M20 AP series

Approvals:

  • IEC 947-5-1
  • EN 60947-5-1
