How to Find the Right Cold Room Door Gasket - and Fit It Correctly
Cold room door gaskets fail more often than any other single component. A worn seal raises running costs, risks food safety compliance, and eventually causes bigger problems with the door mechanism itself. The good news: replacement is straightforward once you know what you need.
How to Find the Right Cold Room Door Gasket - and Fit It Correctly
Cold room door gaskets fail more often than any other single component. A worn seal raises running costs, risks food safety compliance, and eventually causes bigger problems with the door mechanism itself. The good news: replacement is straightforward once you know what you need.
What a cold room door gasket actually does
The gasket creates an airtight seal between the door leaf and the frame. In a chiller, a failing gasket lets warm, humid air in, raising temperature and adding load to the refrigeration unit. In a freezer, the same warm air condenses and freezes on contact with cold surfaces. Ice builds at the door frame, the door becomes difficult to close, and in time the hinges and frame take the strain.
None of that happens overnight, which is why gaskets get ignored until the problem is obvious. By that point, you have already been paying for it in energy costs and engineer callouts.
Why the wrong gasket causes more problems than the old one
The most common mistake is ordering a replacement gasket without checking the profile depth. Gaskets are not universal, even when they look similar. The critical measurement is the offset: the depth of the gasket from the door to the frame when the door is closed. Often best measured are the hinged side of the door.
If the offset is too deep on the hinge side, the door becomes hinge-bound. It will not close cleanly, puts stress on the hinges, and the seal is no better than the worn one you replaced. If the offset is too shallow, you get a poor seal and temperature loss regardless of how tightly the door appears to be shut.
Get the profile right first. Then worry about length.
How to identify the gasket you need
Most gaskets are either manufacturer-specific or follow a universal profile. If you know the coldroom manufacturer, Fermod, MTH, Foster or Kason for example, that is your starting point. Manufacturer gaskets are made to the correct profile and will fit without adjustment.
If you do not know the manufacturer, or the door has been replaced at some point, the best approach is to remove a short section of the old gasket and measure it. Width, depth, and the shape of the clip or compression profile will identify the type. If you are not sure, send a photo. We identify gaskets from photos every day.

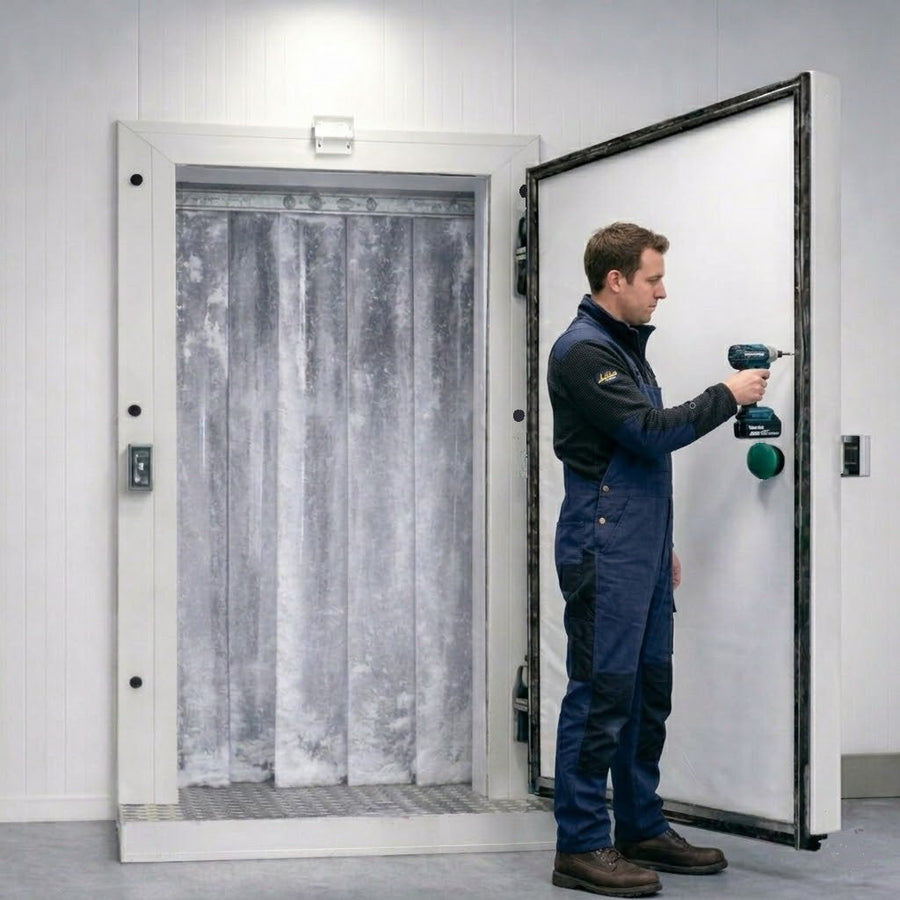

Fitting a new gasket
Most modern gaskets are either a push-fit or have a retaining strip and require no adhesive. Work around the door systematically rather than stretching the gasket into place. Work from the corners towards the middle of the door. Stretching distorts the profile and leads to poor corner sealing. Cut to length cleanly, seat the corners carefully, and check the door closes square after fitting.
Magnetic gaskets such as Foster, Storers or Williams are made to order - to the correct size in a 3-sided or 4-side seal. Other gaskets such as Fermod, come in rolls or lengths and are fitted as a continuous length, or cut and formed on the corners.
See How to fit Fermod 67 gasket.
If you are using adhesive for a non-clip gasket, use food-safe silicone only. Standard silicone is not appropriate in food storage environments.
How often should gaskets be replaced?
A quarterly visual check is the minimum. Look for compression set (the gasket no longer springs back when you press it), cracking, tears at the corners, or areas where the gasket has pulled away from the frame. If you are seeing condensation around the door frame that was not there before, the gasket is the first thing to check.
High-traffic doors, multiple openings per hour in a busy kitchen or production environment, will wear faster than a lightly used chiller. There is no single lifespan figure that applies to all situations. In our experience, a well-maintained gasket in moderate use lasts three to five years. In a busy kitchen environment, plan to inspect more frequently and replace sooner.
Compression, magnetic and sweeper gaskets - what is the difference?
Not all cold room door gaskets work the same way.
Compression gaskets are the most common type on commercial hinged doors. They seal by being compressed between the door and the frame when the door closes. Profile depth and firmness matter here, which is why getting the offset right is so important.
Magnetic gaskets use an embedded magnet to pull the seal tight against a steel strip in the door frame. They are common on light commercial and food service doors. They tend to give a more consistent seal with less clamping force required, which reduces wear on hinges over time.
Sweeper gaskets sit at the base of the door and seal the gap between the door bottom and the floor. They are often overlooked during maintenance checks but are a frequent source of cold loss, particularly on freezer doors where ice build-up at floor level can prevent a clean sweep.
Gaskets, environmental health visits and hygiene ratings
A failed or visibly deteriorating door gasket is one of the most common reasons food businesses lose a hygiene star during an Environmental Health inspection. It is not just about temperature. Inspectors look at the physical condition of food storage equipment, and a cracked, compressed or mould-harbouring gasket is a visible sign of poor maintenance. It will be noted, and it will cost you.
The scoring criteria under the Food Hygiene Rating Scheme includes the physical condition and cleanliness of equipment used to store food. A cold room door gasket that is split, pulling away from the frame, or visibly contaminated is a straightforward fail point. Inspectors do not need specialist knowledge to spot it. They just need to look at the door.
The harder problem is that gasket deterioration is gradual. It does not announce itself. A door that closes and appears to be holding temperature can still be failing on condition. By the time an inspector flags it, you are reactive rather than prepared.
A quarterly check takes two minutes. Run your fingers around the full perimeter of the gasket. Feel for areas that have gone hard and lost their spring. Look for splits, lifting corners, or any black mould sitting in compressed areas of the seal. If you find any of those, replace it before the inspector does.
Fix it before you lose a star.
We stock gaskets for all major manufacturers
Our range covers Fermod, MTH, Kason and universal profiles for hinged and sliding doors. If you cannot find what you need, email us or send a photo via the contact page and we will identify the right part for you. Most orders placed before 2pm ship the same day for next day UK delivery.
