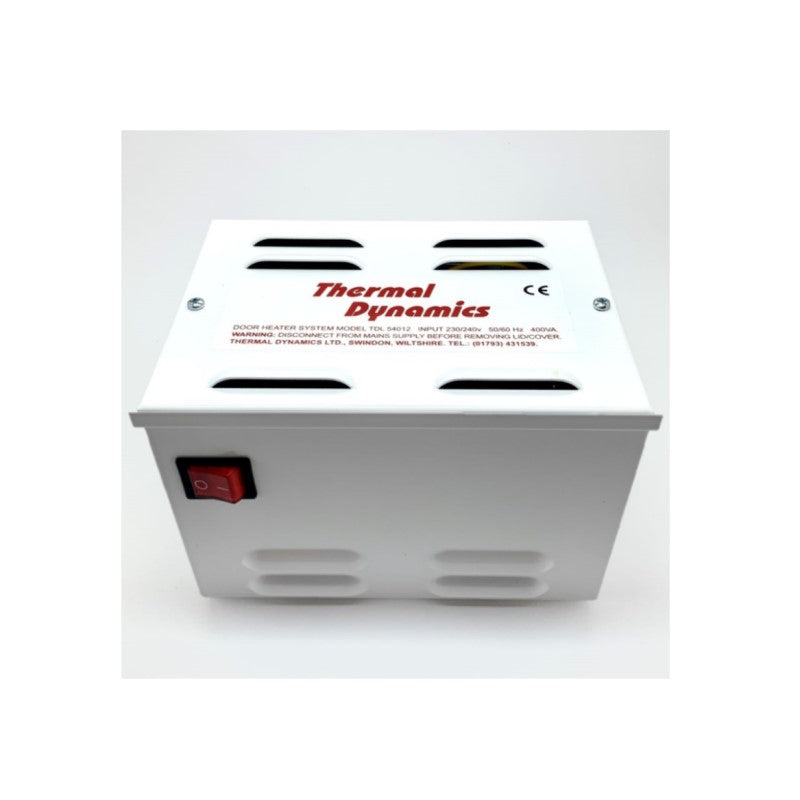

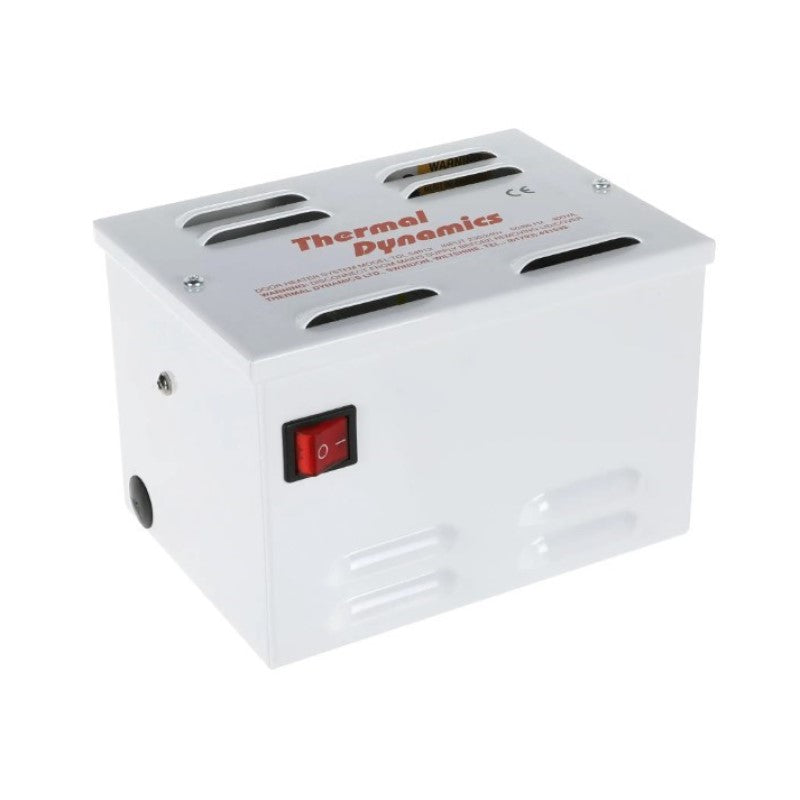

Thermal Dynamics Transformer – TDL 54012
Low-voltage transformer designed for use with 12mm (½ inch) heater tape in freezer coldroom door frame heating applications. Suitable for freezer coldrooms where controlled, adjustable heating is required to reduce ice build-up and support reliable door sealing.
Key features:
- Designed for use with 12mm (½ inch) heater tape
- Universal configuration with adjustable power output
- Suitable for freezer coldroom door frame heating applications
Technical details:
- Model: TDL 54012
- Input voltage: 230/240V, 50/60Hz
- Rated output: 400VA
- Heating capacity: 5ft–40ft (1.52m–12.19m) of heater tape
Installation notice – heater tapes: This product must be installed by a trained and competent coldroom installer or refrigeration engineer. Electrical connections must be made in accordance with applicable regulations and site requirements. Heater tape may be cut to length as required, but must not be overlapped, kinked or damaged during installation. Always confirm correct transformer settings and test the system before final commissioning.
