Fermod 1573 Coldroom Hinge
Product Description

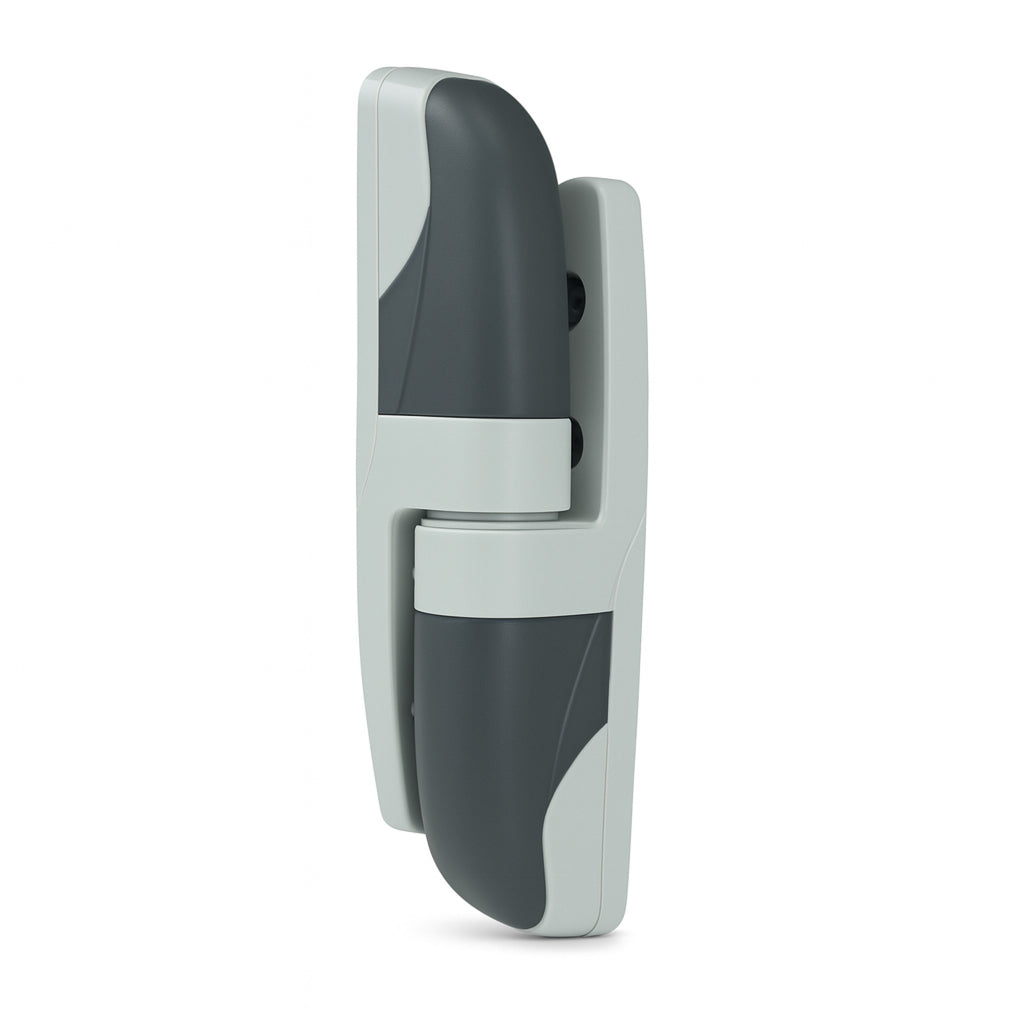

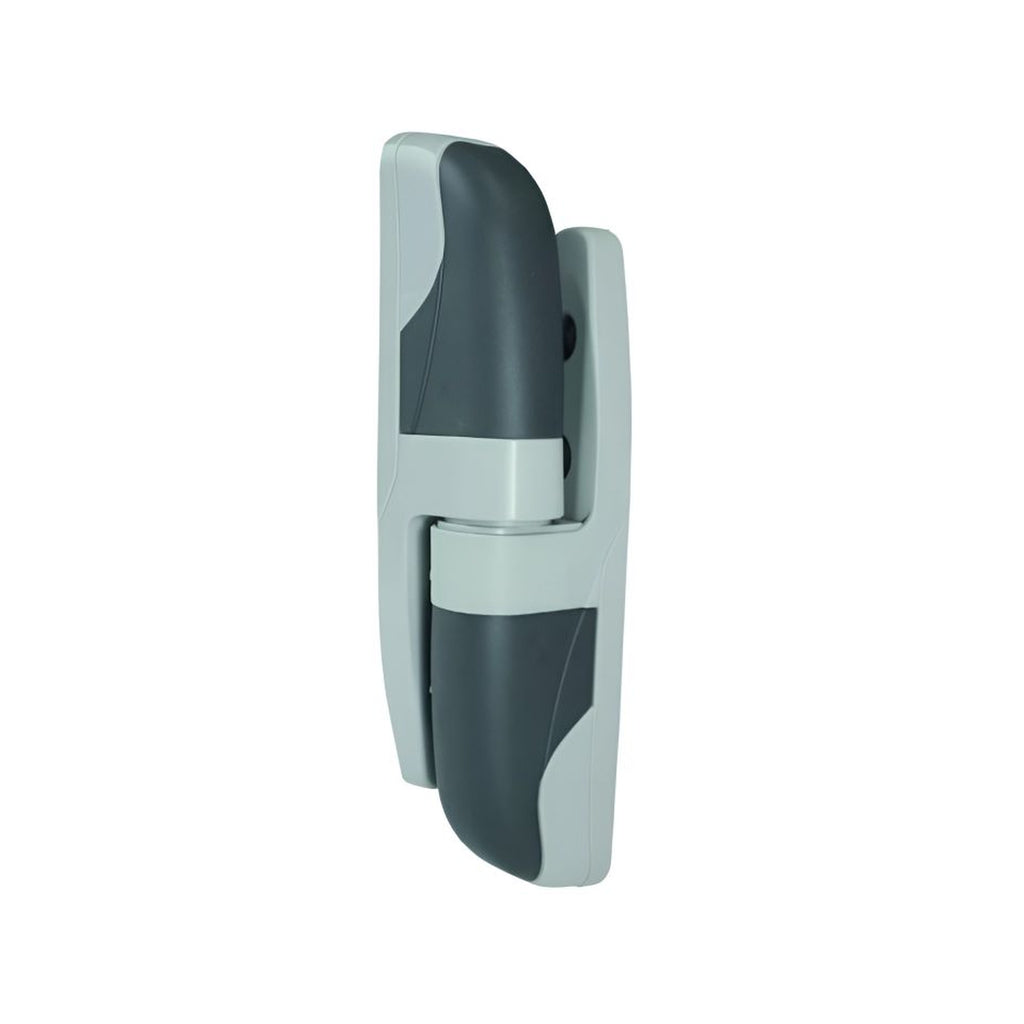

Fermod 1573 Rising Composite Coldroom Door Hinge
The Fermod 1573 is a composite rising hinge designed for overlapping coldroom doors where reliable sealing and precise adjustment are required. Its rising action lifts the door as it opens, helping to prevent sweeper gaskets from dragging on the floor and reducing wear over time.
Key features:
- Rising composite coldroom door hinge
- Designed for overlapping coldroom doors
- Rising action lifts the door during opening to avoid sweeper gasket contact with the floor
- Symmetrical design
- Invisible, tamper-proof fixing screws
- Interchangeable for left- or right-hand doors
- 180° door opening
- Suitable for door thicknesses from 62mm to 110mm, including gasket
- Maximum door weight: 80kg
Adjustment:
- Height adjustment: ±10mm
- Width adjustment: ±2mm

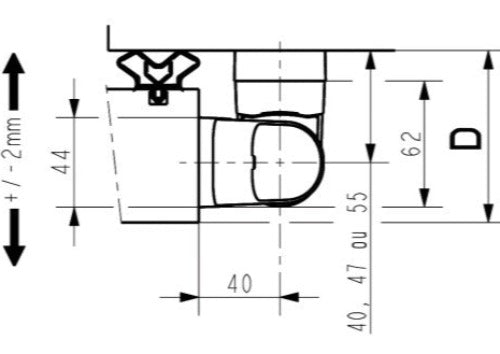

Offset options:
- Available offsets: 40mm, 47mm, or 55mm
- 47mm offset is the most commonly used option
Coldroom door offset – what does it mean? The door offset is the measurement from the door frame to the outer face of the door when it’s in the closed position. Selecting the correct offset ensures the handle aligns properly and the seal compresses evenly for a tight, reliable seal. Please contact us if you are unsure.
Additional resources:
Coldroom Door Offset - What is it?
