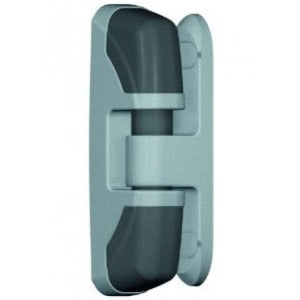

Fermod 1473 Composite Cold Room Door Hinge - Pair
Fermod 1473 Composite Door Hinge - Pair. Immediate rising. Invisible and tamper-proof fixing screws. Interchangeable for left or right hand doors.

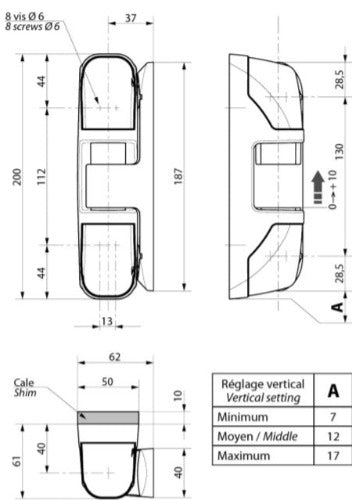

Vertical (0/+10 mm)
Horizontal (±5 mm)
Gasket compression (±3,5 mm)
For 60mm to 80mm door thickness including gasket,
for 180° opening.
Maximum door weight 80kg
Made of: composite
Option: 10 mm composite shim, light grey stackable
- for 70mm to 100mm door thickness with a single 10mm shim
- for 80mm to 120mm door thickness with two 10mm shims
