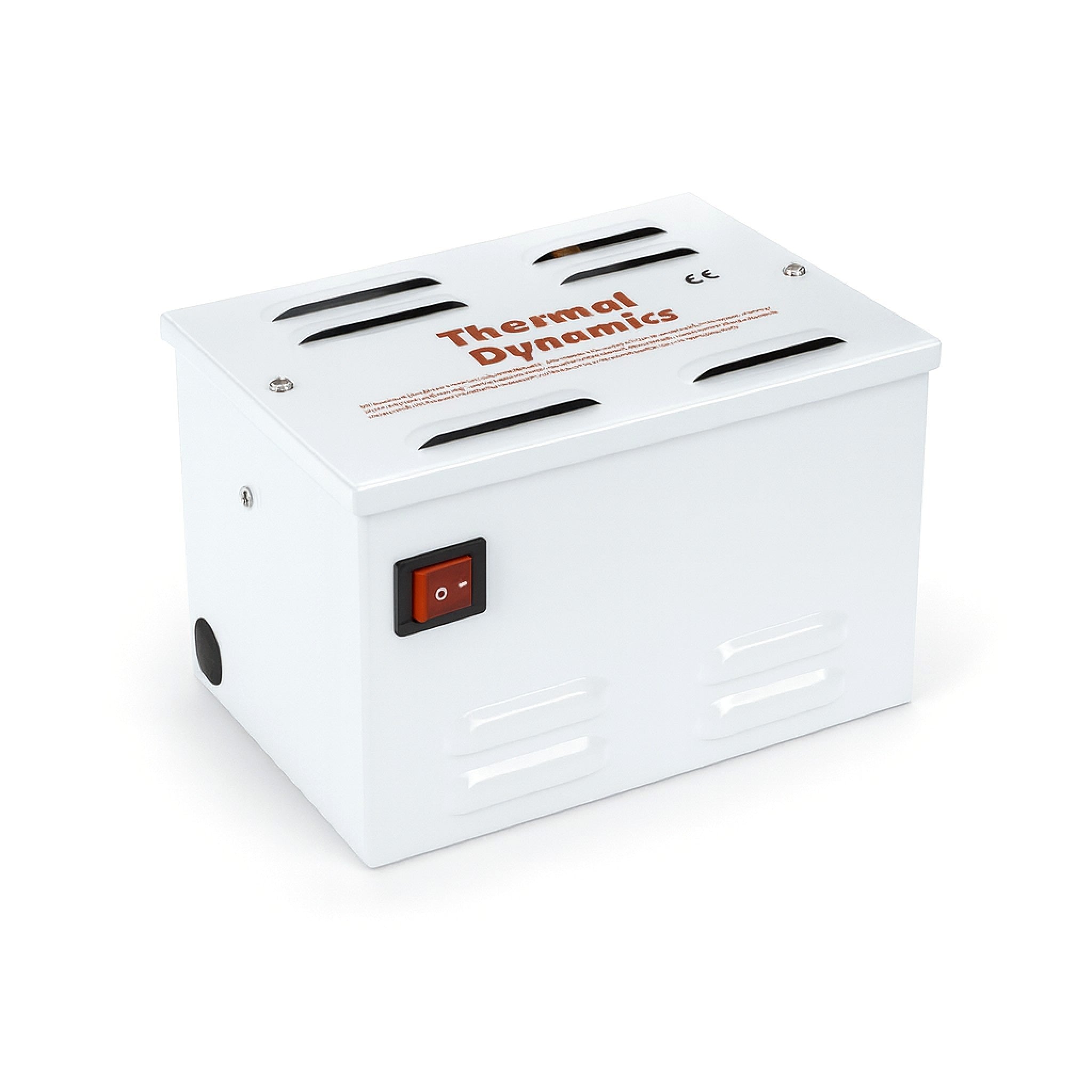

Thermal Dynamics Transformer – TDL-54025
Low-voltage transformer designed for coldroom and freezer heating applications using 25mm (1 inch) heater tape. The universal design allows heater tape length to be adjusted within the unit, providing flexibility during installation and commissioning.
Key features:
- Low-voltage transformer for use with 25mm (1 inch) heater tape
- Universal design with adjustable power output
- Suitable for coldroom and freezer heating systems
Technical details:
- Model: TDL 54025
- Input voltage: 230/240V, 50/60Hz
- Rated output: 400VA
- Heating capacity: 5ft–40ft (1.52m–12.19m) of heater tape
Additional information:
- Transformer is specific to the heater tape specifications listed
- Other Thermal Dynamics transformers may be manufactured to order with longer lead times
Installation notice – heater tapes: This product must be installed by a trained and competent coldroom installer or refrigeration engineer. Electrical connections must be made in accordance with applicable regulations and site requirements. Heater tape may be cut to length as required, but must not be overlapped, kinked or damaged during installation. Always confirm correct transformer settings and test the system before final commissioning.
