Fermod 1573 Cold Room Hinge - Rising - Absolute Coldroom

Fermod 1573 Coldroom Hinge

£33.00 Excl. VAT

Fermod 1573 Rising Coldroom Door Hinge

Composite Hinge to suit overlapping coldroom doors.

  • With Offsets of 40mm, 47mm or 55mm
  • Rising
  • Symmetrical, Invisible and Tamper-Proof Fixing Screws
  • Interchangeable for left or right-hand doors
  • Adjustable in 2 dimensions: height (+/- 10 mm) and width (+/- 2mm)

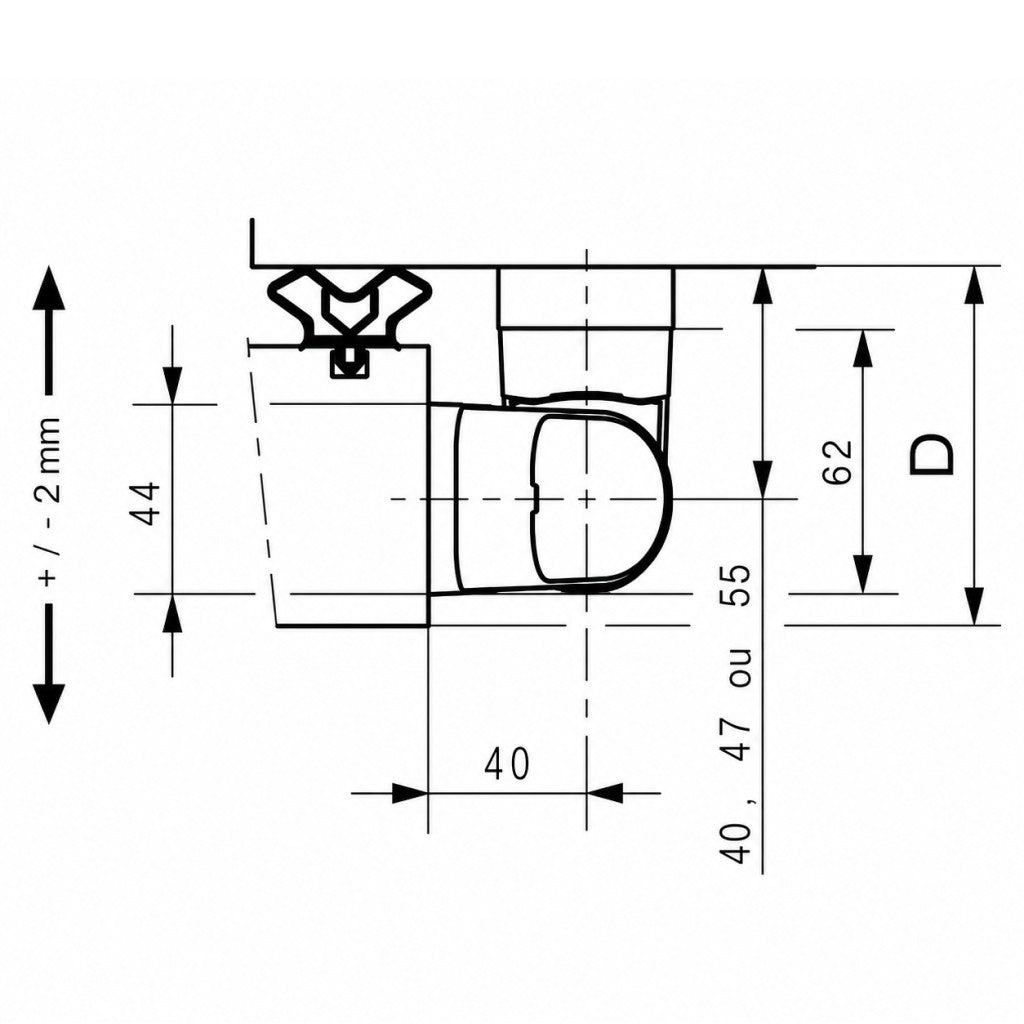

  • Suitable for doors thickness of 62 to 110 mm, gasket included (D - see image 3)
  • 180° opening
  • Maximum door weight - 80kg
  • 47mm is the most popular offset



Useful Links:
