Coldroom Door Not Closing Properly? Here's How to Diagnose the Problem

The Most Overlooked Cause: The Door Frame Heater

If there is one component that causes more downstream damage than any other, it is the door frame heater, and most people do not even know it exists.

Commercial freezer doors are fitted with a low-voltage heater element that runs around the door frame. Its job is to prevent condensation and ice from forming on the frame itself, which would cause the door to freeze shut or prevent it from sealing correctly. When it fails, the effects are gradual but cumulative.

Signs the frame heater has failed:

• Ice build-up on the external parts of the door frame
• Frost forming around the door seal
• The door feels like it is sticking or not closing flush
• Visible condensation or moisture around the frame

The problem is that these signs are easy to ignore, or to assume someone else will deal with. In fast food and hospitality environments, the people working on site are rarely the people responsible for maintenance costs. Ice on the frame becomes background noise. By the time it is reported, what could have been a simple heater replacement has often become a full door replacement, with damaged seals, warped frames, and broken hinges all compounding the original fault.

The rule of thumb: if you can see ice on the outside of the freezer frame, the heater has likely already been failed for some time. Get it checked immediately.

Staff Not Closing the Door Properly

It sounds simple, but it is one of the most common causes of energy waste and frost build-up. In a busy kitchen, doors get nudged shut with a hip or kicked closed with a foot, especially when hands are full of stock.

If the door does not get closed fully, it stays open. In a chiller, that means warm air gets in, the unit works harder, and running costs rise. In a freezer, warm moist air ingress causes frost build-up on the internal walls and evaporator coil, which reduces cooling efficiency and eventually causes its own refrigeration problems.

This is not necessarily a fault with the door furniture or seal. The door and gasket may be in perfect condition. The issue is simply that the door has not been pushed shut. Compression-type gaskets in particular require a firm, deliberate close to compress and form an airtight seal. A half-hearted push, especially on a new door with a stiff new gasket, is often not enough.

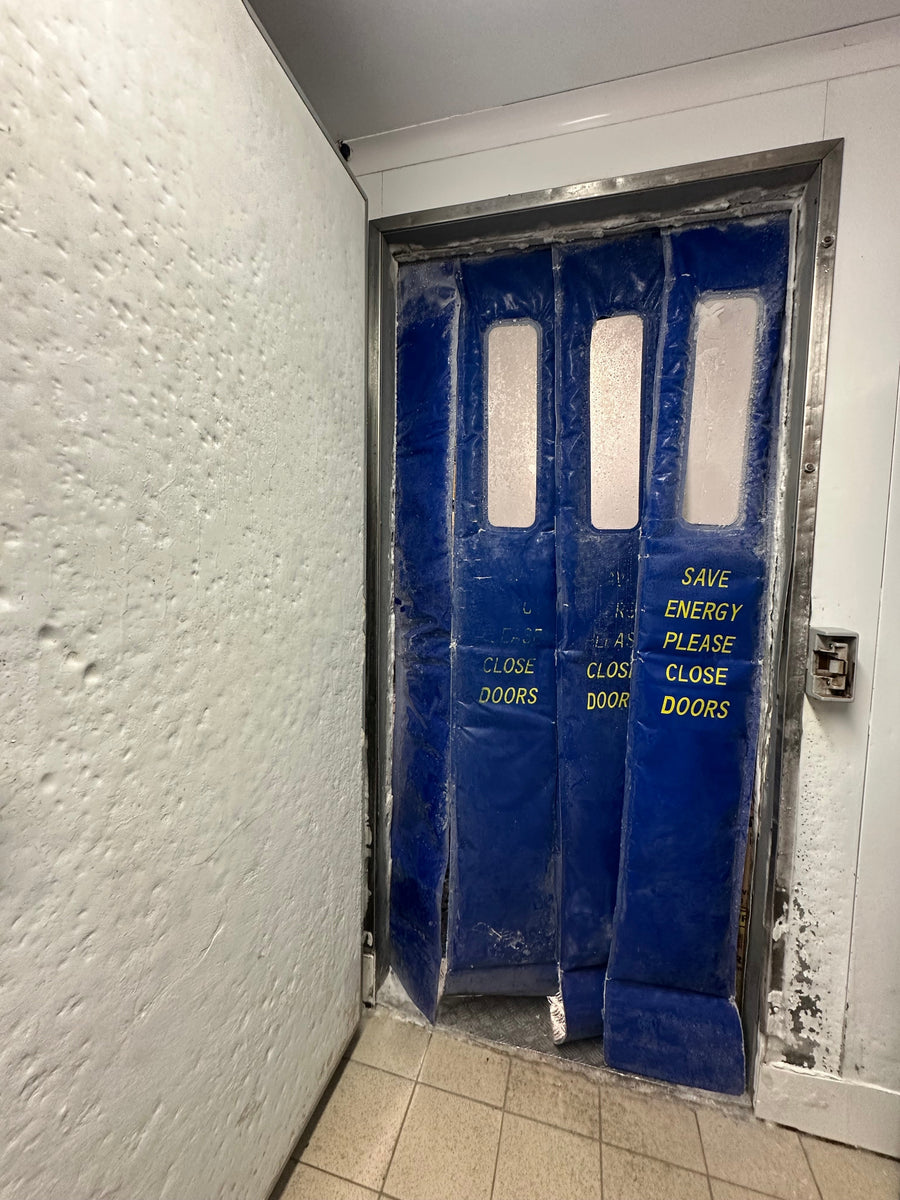

What to look for: frost build-up on the PVC strip curtain, internal walls or evaporator coil is a strong indicator that warm air has been getting in. If the door has an open-door alarm, check whether it is being triggered regularly and quietly ignored.

Gasket Failure

The door gasket is the seal that runs around the perimeter of the door. There are two main types used on commercial coldroom and freezer doors: magnetic gaskets and rubber compression gaskets. Both fail differently.

Magnetic gaskets rely on a magnetic strip embedded within the seal to hold the door shut. The outer material can be damaged relatively easily. A knock, a tear, or repeated rough handling can expose or dislodge the magnetic strip. Once that happens, the gasket needs to be replaced entirely. There is no reliable repair for a damaged magnetic strip.

Rubber compression gaskets degrade over time through a combination of age, temperature cycling, and physical wear. In kitchen environments, grease and oil from handling accelerate the deterioration of the rubber, causing it to harden, crack, or lose its flexibility. A gasket that cannot compress properly cannot seal properly.

How to check: visual inspection is the most reliable method. Look for tears, hardening, flattening, or sections where the gasket has pulled away from the door. A simple field test is to close the door on a piece of paper or card. If you can pull it out without resistance, the seal at that point has failed.

If the gasket looks intact but the door still is not sealing, the issue is more likely the door strike or catch. A worn or broken strike is a common cause of a door that appears closed but is not properly latched.

Hinge Wear and Damage

Freezer door hinges do a significant amount of work. Every open and close puts load through them, and that load increases if the door is being swung open hard, allowed to open back against a wall, or if something stored beside the door is obstructing its travel.

A door that regularly binds against an obstruction puts abnormal strain on the hinges. Over time this causes them to bend, crack, or fail entirely. Because it happens gradually, it often goes unnoticed until the door starts to sag or drag.

Modern commercial door hinges are typically made from composite materials rather than metal. Composite hinges are lighter and corrosion-resistant, but they are more susceptible to cracking and snapping under impact or sustained stress. The hinge covers, the plastic caps that protect the hinge body, are often the first thing to go. Losing a cover is cosmetic in the short term, but it does expose the hinge body, making it easier to spot cracking before it becomes a full failure.

What to look for:

• The door dropping or dragging on one side
• Visible cracks in the hinge body once the cover is removed or lost
• The door not sitting flush in the frame when closed
• Unusual resistance when opening or closing

Hinge adjustment can correct minor sagging, but if the hinge itself is cracked or the door has been binding for a long time, adjustment alone will not be enough.

The Compounding Problem

What makes freezer door faults particularly costly is how quickly one problem leads to another. A failed frame heater causes ice build-up, which prevents the door from sealing, which allows warm air in, which causes frost on the evaporator, which reduces cooling efficiency and increases running costs. A door that opens against an obstruction damages the hinges, which causes the door to sag, which means the gasket no longer compresses evenly, which means the door does not seal.

None of these faults are overly expensive to fix in isolation. All of them become expensive when left.

The most important maintenance principle for commercial freezer doors is this: inspect regularly, not just when something is visibly broken. A quick visual check of the frame heater, gasket, hinges, and door close takes minutes and can prevent thousands of pounds in repair or replacement costs.

Summary: What to Check First
