Fermod 758/e Coldroom Hinge

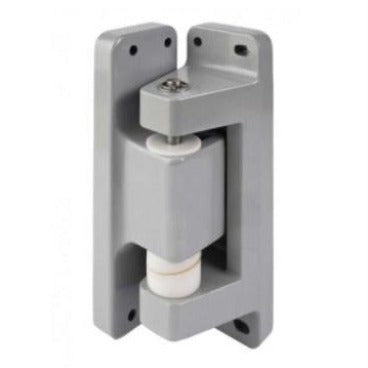

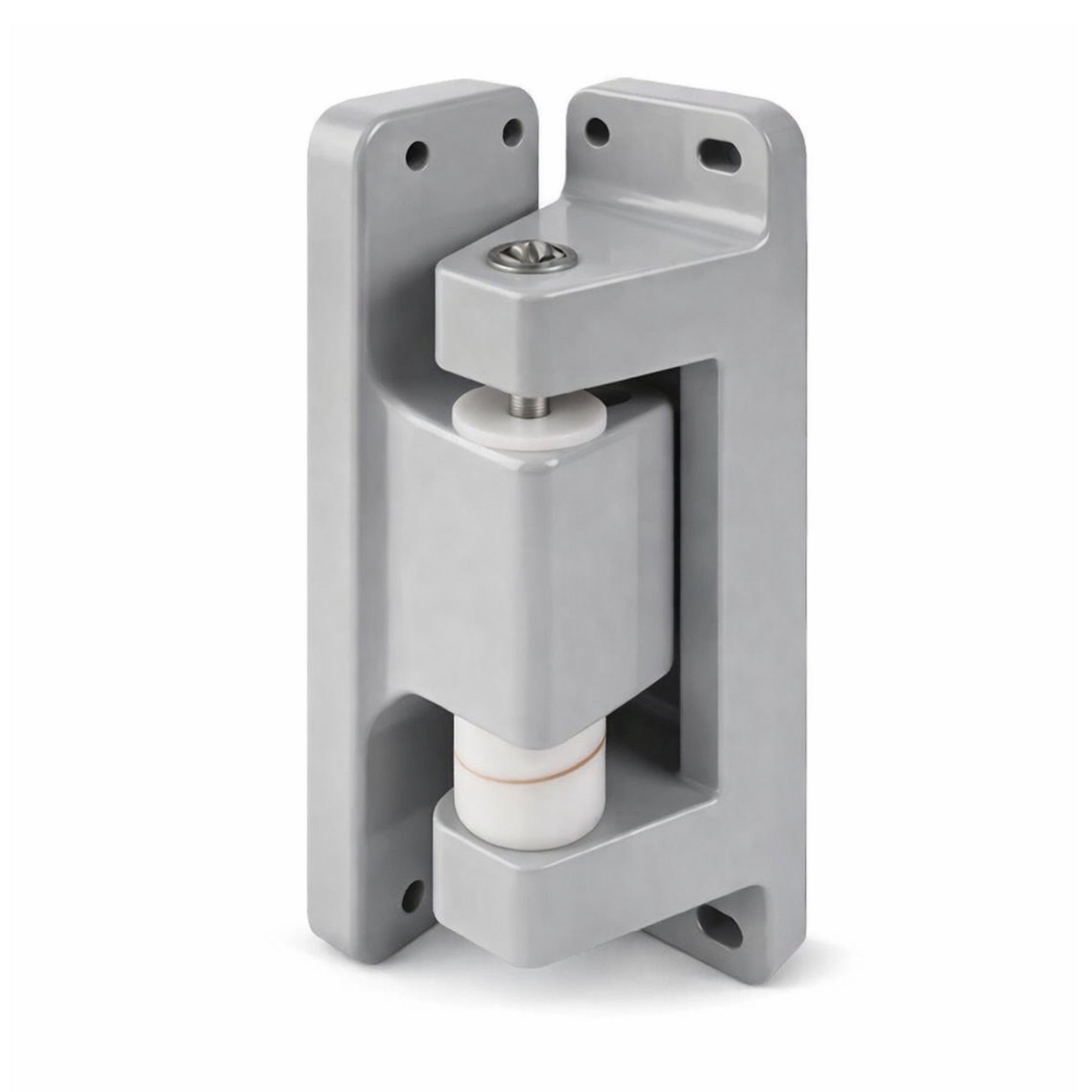

Fermod 758/E Rising Hinge for Coldroom Doors

The Fermod 758/E rising hinge is designed for hinged coldroom doors where reliable sealing and long-term durability are required. Supplied with an enamelled finish and a non-corrosive pin, it is suitable for doors between 100mm and 145mm thick, including gasket depth, and supports door weights of up to 120kg.

This hinge incorporates an internal spring device that helps ensure a positive seal at all times. The spring compensates for gasket compression over time or minor door distortion, helping maintain consistent sealing performance. Delrin ramps raise the door by up to 10mm when opened to 180°, reducing gasket wear and improving door operation.

The hinge length is 275mm and it is supplied as a single hinge. Left- and right-hand options are available; select left for doors with hinges on the left-hand side and right for doors with hinges on the right-hand side. Ideal for new installations or replacement on commercial coldroom doors, supplied by Absolute Coldroom.
