Fermod 2227NT-V Pressure Relief Valve

£37.00 Excl. VAT

Fermod 2227 Pressure Relief Valve.

(NT-V version supplied as standard- see image 3)

Wall or ceiling mounted pressure relief valve for cold rooms up to 75 m3 - Patented. Fermod 2227 Pressure Relief Valve.

Wall mounted: extends in depth from 75 to 150 mm (up to 215 mm with the aluminium extension tube)
For 120 mm maximum ceiling thickness
Easy mounting

The walls of a cold room are constantly subjected to strains caused by pressure variations, either from inside or outside.
The patented FERMOD pressure relief valves allow the balance of internal and external pressures.

Expandable valve for 75 to 150 mm wall thickness, up to 215 mm with the aluminium extension tube

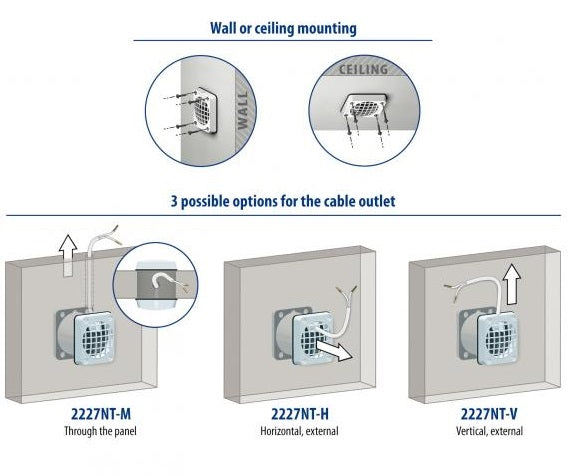

For 120 mm maximum ceiling thickness. 3 possible options for the cable outlet: external vertical, external horizontal or through the panel
Wall or ceiling mounting. Airtight mobile flaps to limit ice formation in cold room
Watertight mounting to avoid ice formation between the valve and the wall. 8W heating element is completely enclosed in the valve. Made of chemically resistant and corrosion proof composite material
